Prefabricated Rebar Cage Solution – Optimizing Concrete Wall Construction

A large prefabricated rebar cage cluster fabricated in the workshop, awaiting transport to the construction site.

In reinforced concrete construction, rebar cages (or reinforcement cages) serve as the “skeleton” bearing loads inside concrete walls, columns, and beams. Traditionally, individual rebars are cut, bent, and tied directly on site, forming a cage within the formwork before concrete casting. However, this conventional method consumes substantial labor and time at the site. The prefabricated rebar cage solution is an improvement, where rebar cages, or parts of cages, are pre-manufactured into modules and assembled on site. This approach is increasingly applied to optimize wall construction, especially in projects requiring fast schedules, large concrete volumes, and high quality standards.

1. What is a Prefabricated Rebar Cage?

A prefabricated rebar cage is a reinforcement frame pre-manufactured either partially or entirely in advance, then transported to the site for installation at the designated position. Instead of tying each rebar one by one on site, construction teams can assemble prefabricated cage segments using mechanical connections (such as threaded couplers, headed bolts, or butt welding).

For example, in the construction of retaining walls or core elevator shaft walls, instead of installing each vertical and transverse bar individually, the wall can be divided into 2–3 meter segments, with rebar cages fabricated in advance for each section. At the site, the prefabricated cage segments are lifted into the formwork and connected through spliced joints. This modular approach allows rapid construction, similar to assembling Lego blocks in building structures.

1.1 Comparison with Traditional Rebar Tying

Manual tying of rebars on site has been practiced for centuries, but it reveals significant limitations in large-scale projects. Key differences between prefabricated rebar cages and the conventional tying method include:

• Construction time: Modular assembly is considerably faster. Studies show prefabrication can reduce on-site installation time by 30–50% compared to manual tying, which is critical for fast-track projects.

• Labor and safety: Since most tying is completed beforehand (in workshops or yards), fewer workers are needed at heights or in confined spaces. Reduced on-site labor leads to improved safety and lower accident risks.

• Quality and precision: Prefabricated cages are manufactured in controlled factory environments with machinery and templates, ensuring accurate dimensions, spacing, and anchorage positions. Strict quality control at the workshop results in consistent products, minimizing errors compared to outdoor manual tying.

• Reduced material waste: Fabrication in workshops allows optimized cutting and bending, limiting excess and scrap. Statistics from projects show significant reductions in steel wastage, lowering costs for owners.

• Fewer intersections and easier concreting: With prefabricated cages, bars can be arranged more rationally, using headed bars instead of hooks, reducing bar congestion. This facilitates concrete pouring and vibration, ensuring uniform compaction and minimizing voids caused by excessive reinforcement congestion.

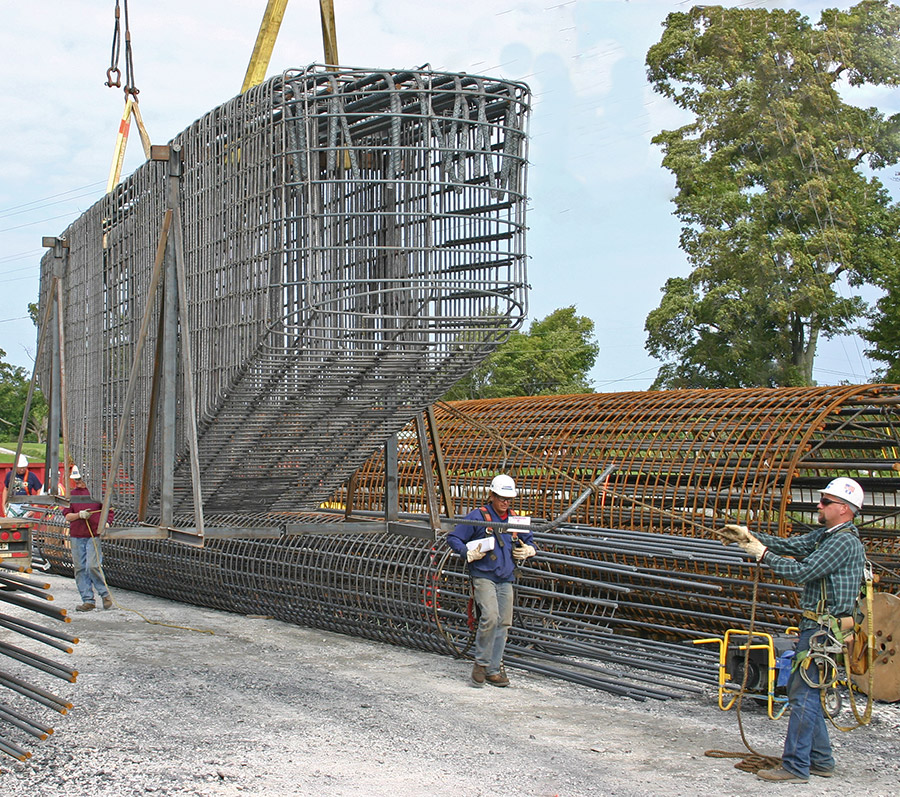

Large prefabricated rebar cage lifted with multi-point hoisting. (Source: Dimension Fabricators)

In summary, prefabricated rebar cages bring substantial benefits in speed, cost, and quality compared to conventional tying. “The use of prefabricated cages with headed connections shortens construction time while improving product reliability through factory-based quality control.” This trend aligns with the modernization of the construction industry toward faster, safer, and more efficient execution.

1.2 Application of Prefabricated Rebar Cages in Concrete Walls

Reinforced concrete walls (e.g., basement walls, core shear walls, retaining walls, reactor containment walls) typically cover large areas with dense reinforcement. These are ideal candidates for prefabricated cage solutions. Instead of constructing the entire wall at once, contractors can divide the wall height into segments, each with a prefabricated rebar cage.

For example, a 9 m high wall can be divided into three 3 m segments. Each segment is prefabricated with two reinforcement layers as per design, leaving couplers or spliced bars at the top. During construction, the cage for Segment 1 is lifted into the formwork, fixed in position, and concreted. The cage for Segment 2 is then placed atop Segment 1, connected by couplers, and concreted, and so on until the wall is completed. This method is similar to jump-form construction but with the advantage that each segment’s cage is pre-assembled, eliminating the need for manual on-site tying.

A notable example is the barrette diaphragm wall at Stevens MRT Station (Singapore). Contractors used prefabricated cages for diaphragm wall panels several tens of meters thick. All cages were prefabricated in factories and delivered “just-in-time” to the site. This minimized steel storage at the congested site, and teams could lower cages directly into the excavation upon delivery. Additionally, these cages had pre-installed couplers, facilitating subsequent basement excavation and significantly saving time. The project owner acknowledged substantial savings in cost and labor while enhancing site safety.

Beyond straight walls, prefabricated cages are also used for curved walls and arches, such as tunnels or bridge vaults. Pre-bent curved cage segments are fabricated to design radius and connected sequentially during assembly. This requires high accuracy, highlighting the advantage of machine-based prefabrication.

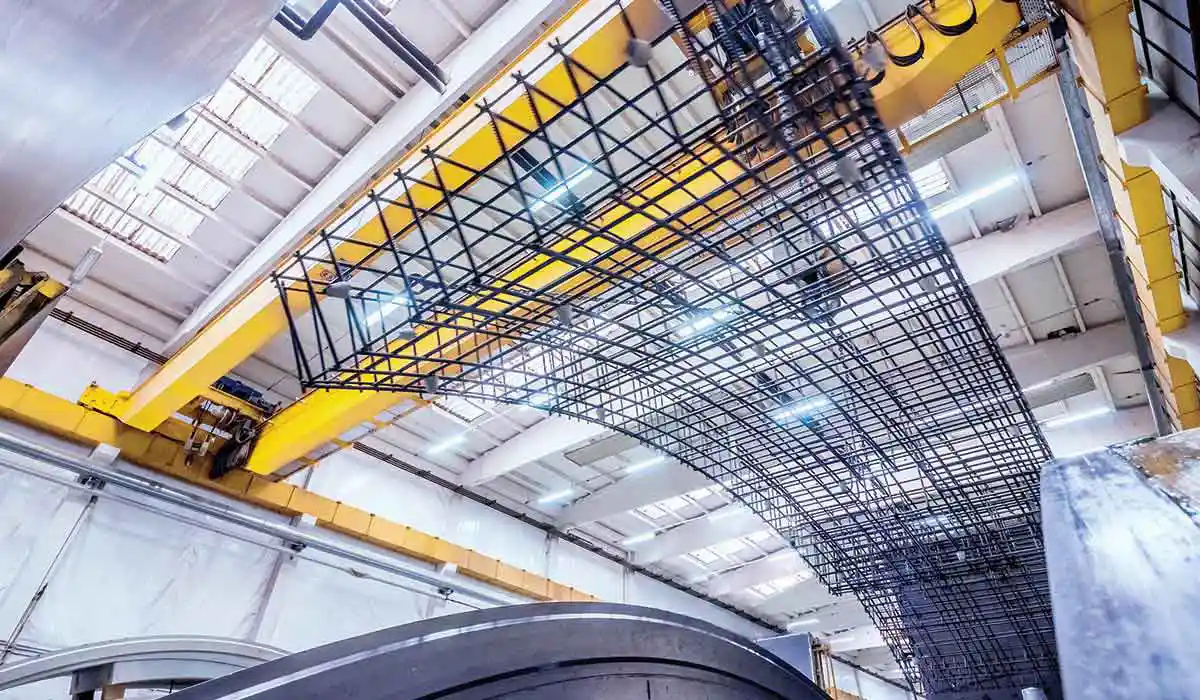

Curved reinforcement mesh cage bent to the design radius, hoisted in the workshop for automated production of tunnel/arch segments. (Photo: Firmengruppe Max Bögl; Source: NBM&CW)

2. Technology for Manufacturing and Erecting Prefabricated Rebar Cages

Effective implementation of prefabricated rebar cage solutions requires technology integration across design, fabrication, and erection stages:

• 3D modeling and BIM: Engineers model the entire rebar cage in 3D, then divide it into transportable and installable modules. BIM helps determine coupler locations and assembly sequences precisely, coordinating structural design and construction methods.

• Automated fabrication: In workshops, automated bending and welding machines enable rapid and precise cage manufacturing. Robotic welding lines can produce circular cages up to 3–4 m in diameter or beam cages tens of meters long. Prefabricated cages are inspected for accuracy and braced to prevent deformation during transport.

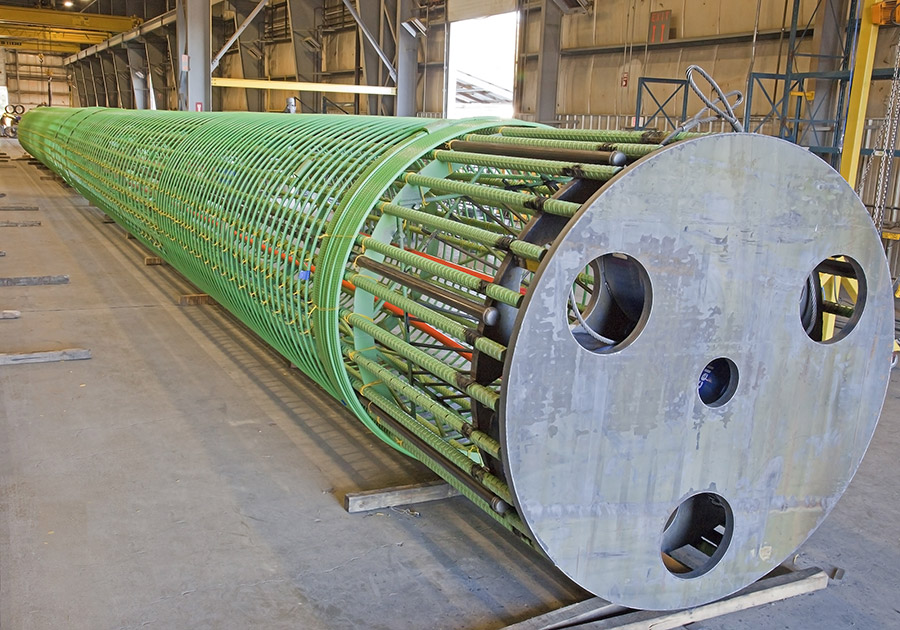

Large-diameter bored pile rebar cage (epoxy-coated reinforcement) prefabricated in the workshop, fully assembled in modular sections; delivered to site for immediate placement into the borehole. CSL tubes and O-Cell load test devices can be integrated when required. (Source: Dimension Fabricators)

• Transportation and erection: Prefabricated rebar cages are typically bulky, so a safe transport plan is required (specialized trailers with secure lashing). Upon arrival on site, cranes with adequate capacity and outreach must be arranged to hoist the cage into position. For long cages, use multi-point lifting to prevent bending/warping of the cage. Erection is usually rapid—on the order of tens of minutes to set one cage in the formwork—after which the crew connects the bar ends/couplers, fixes the cage in place, checks the elevation/level, and proceeds immediately to concrete casting. This workflow significantly shortens the total time for rebar fixing and concreting for each wall segment.

Overall, the success of the prefabricated rebar cage solution hinges on thorough preparation and tight coordination across design–fabrication–construction. Any errors in module dimensions or coupler locations can cause difficulties during on-site assembly. Therefore, rigorous quality control is essential: from inspecting every weld and each threaded coupler in the workshop, to supervising lifting and placement to ensure the cage is set exactly at the designed position.

3. Application in Complex and Heavy-Duty Structures (e.g., Nuclear Power Plants)

In nuclear power plants or heavy industrial projects, reinforced concrete structures are massive and demand the highest safety. For example, reactor shielding walls are 1–1.5 m thick with multiple dense reinforcement layers. Manual rebar tying under such conditions is highly difficult and time-consuming. Prefabricated rebar cages are particularly suited to these projects, where schedule and quality are crucial.

A U.S. Department of Energy–sponsored study (Prefabricated High-Strength Rebar Systems with High-Performance Concrete for Accelerated Construction of Nuclear Concrete Structures) demonstrated that using high-strength rebar systems combined with prefabricated cages and headed anchors significantly reduces construction time and costs for nuclear concrete structures. The approach simplifies cages, reduces bar congestion, and eases inspection and concrete placement, accelerating schedules while improving reliability.

Countries with nuclear experience (Korea, China, UAE) have extensively applied modular construction methods. At the Barakah NPP (UAE), large-scale prefabrication and modular assembly (notably open-top construction and large-module pre-assembly) shortened schedules, enhanced quality, and improved safety—clear evidence of prefabricated rebar cage benefits in nuclear construction.

Challenges remain: nuclear structures require extremely tight tolerances, meaning prefabricated cages must be manufactured with absolute accuracy. On-site connections (couplers or welds) must undergo rigorous quality checks (e.g., radiography, tensile tests), similar to structural steel welding inspections. Nevertheless, with proper quality management, these challenges can be overcome. IAEA recommends new nuclear countries adopt advanced construction methods, including modularization, integrated with digital management to ensure both speed and quality (Source: Construction Technologies for NPPs).

In Vietnam, as nuclear power re-enters consideration, advanced methods like prefabricated rebar cages will be essential. They accelerate large concrete works, enhance localization capacity (through domestic cage fabrication), and ensure safety and quality per international standards. With its experience in nuclear projects worldwide, Pontech recognizes the importance of adopting modern construction technologies for Vietnam’s future.

4. Conclusion

The prefabricated rebar cage solution represents a significant advancement in reinforced concrete construction. From conventional civil works to complex infrastructure and nuclear power plants, its application delivers clear benefits in schedule, cost, and quality. Modular construction aligns with Vietnam’s modernization strategy, reducing construction time, lowering reliance on manual labor, and boosting contractor competitiveness.

Of course, successful implementation requires upfront investments in BIM, fabrication technology, and workforce training. In the long term, however, the benefits—faster, safer, and higher-quality construction—justify the investment. As Vietnam undertakes more large-scale projects, mastering prefabricated rebar cage technology will save time and costs while elevating construction standards.
